PRESSOL PISTOL GRIP / ONE HANDED GREASE GUN (500g)
Couldn't load pickup availability

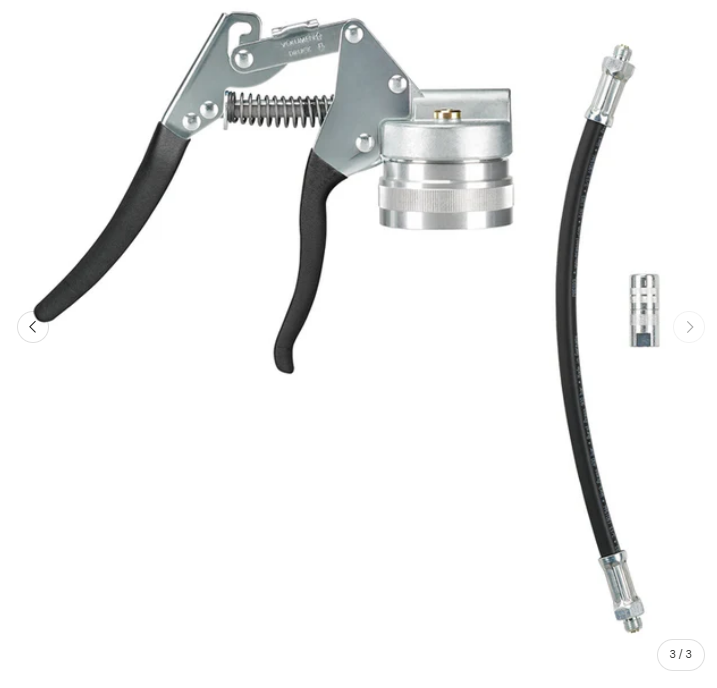

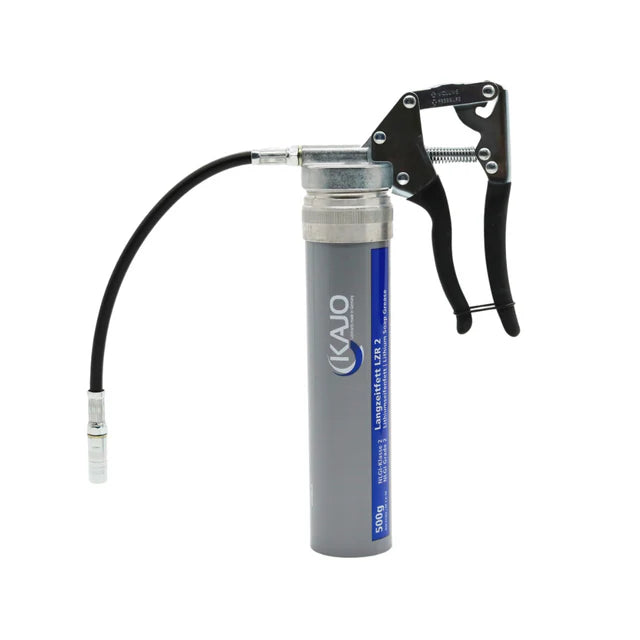

The Pressol pistol grip one-handed grease gun is compatible the 500g screw thread cartridges. This compact manual grease gun makes greasing much more efficient. View exactly how much of the cartridge has been used by viewing the position of the plunger from the bottom.
- Adapter for 500 g screw-in cartridges.
- High pressure hose, M 10 x 1 male, 11 x 300 mm.
- Precision machined coupler, 4 claws, M 10 x 1 female.
- Galvanized parts: grip, lever, pulling strap.
- Grease gun head, zinc die casting Z 410.
- Operates with greases up to NLGI grade 2 at 20°C.
- The construction allows a single hand operated lubrication for an easy work in restricted areas.
- No Bleeding required
- Less moving parts than the conventional guns
- Sturdier
- Lighter
- Compatible with the bigger 500g screw thread cartridges
Can be switched with the hand grip from grease delivery with high volume to high pressure
Grease tube not included.
Click here to download data sheet
How Kajo grease works?
Follow this video guide to adapt your battery grease gun for use with the KAJO 500g screw thread grease cartridges. OxRock have adapters for Milwaukee, Macnaught, Metabo, AEG, DeWalt and Makita guns.
Step by Step
1. You will need: a battery grease gun, a compatible adapter and a 24mm socket.
2. Simply remove the metal cartridge and ensure the black seal on the inside of the gun is clean (You can use a degreaser or brake cleaner to remove any old grease residue & dirt).
3. Insert the required adapter made specifically for your gun model using a 24mm socket.
4. Torque to 25Nm, try not to over tighten, the adapter is now a permanent fixture within the gun unless you decide to remove it.
5. Take the KAJO 500g screw thread grease cartridge of your choice and before removing the cap, push the plunger at the bottom to release any trapped air.
6. Now remove the cap and push the plunger again until roughly 5-10ml of grease exits the tube.
7. Insert cartridge into the adapted gun and screw until you feel resistance (Don't over tighten).
8. Push the plunger again to allow grease to enter the grease chamber manually.
9. Continue to push the plunger while simultaneously pressing the bleeder button on your gun to release any air that's inside the chamber.
10. Repeat the last step until a steady flow of grease exits the chamber.
11. Happy greasing!
