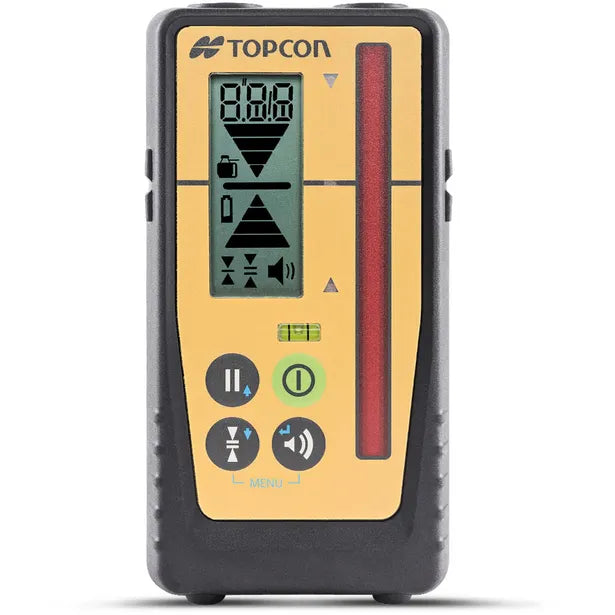

TOPCON ROTATING LASER LEVEL DETECTOR RED BEAM MILLIMETRE LS-100D 102603001

The LS-100D digital laser sensor is designed to increase speed and productivity on any job, by providing the perfect blend of operator-friendly technology and enhanced precision for elevation and vertical alignment control. The LS-100D Topcon receiver has 4 accuracy resolutions from ±0.5mm to ±10mm and a 90mm reception height for the extra-wide beam capture sensor. This extra-wide beam capture also has strobe-proof protection, so you can be confident you are getting an accurate and quick result.

The LS-100D Topcon laser level receiver has strong magnets embedded for vertical and horizontal operation, which is ideal for steel erections or excavation grade checking. The LS-100D Topcon receiver also has a number of operator-friendly features, including bright and large LCD displays (front & back) which are readable even in strong sunlight. It also has three coloured LEDs and a hold button for locking the display to read elevation results. The LS-100D Topcon laser receiver that is available for sale is the ideal partner for the RL-SV2S, RL-H5A, or the RL-200 series.

• Working Range (diameter) Up to 800 m
  90mm detection window
  Magnets for vertical steel erection
  On-Grade Resolution ±0.5, ±1.0, ±2.0, ±5.0, ±10.0 mm
  45-hour battery life

Specifications

• Vertical Detector Range

  • 90mm
• Horizontal Detector Range

  • ±45°
• Strobe Light Suppression

  • Yes
• On-Grade Resolution

  • ±0.5mm
  • ±1 mm
  • ±2 mm
  • ±5 mm
  • ±10 mm
• Operating time

  • Up to 45 hours
• Auto Shut off

  • Approx. 30 minutes
• Dust/Water Rating

  • IP67
• Operating temperature

  • -20° to 50°
• Magnet Mount

  • Two magnets on top

Includes

• 1 x LS-100D Laser Receiver
• 1 x Holder 110 Holder
• 1 x 'AA' Battery

*Charger not included.
